| Broadband Antenna with Practically Omnidirectional Radiation Pattern. | ||
 |
||
|

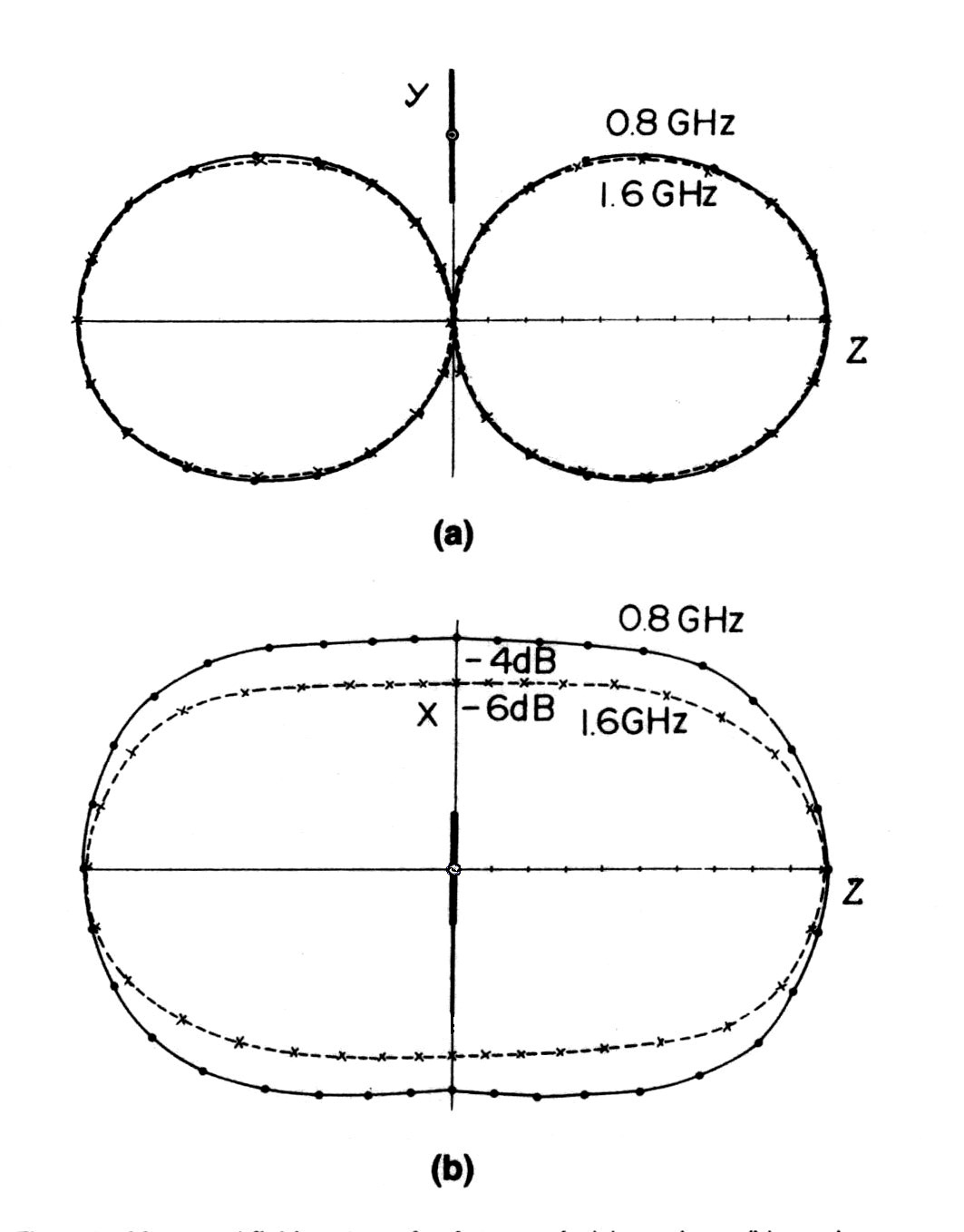

Fig. 1.Measured field patterns of Truncated alternate-leaves type self-complementary antenna or (Square SCA): (a) yz-plane,(b) xz-plane. (Electric field is in y-direction). |
||
 |
||
|

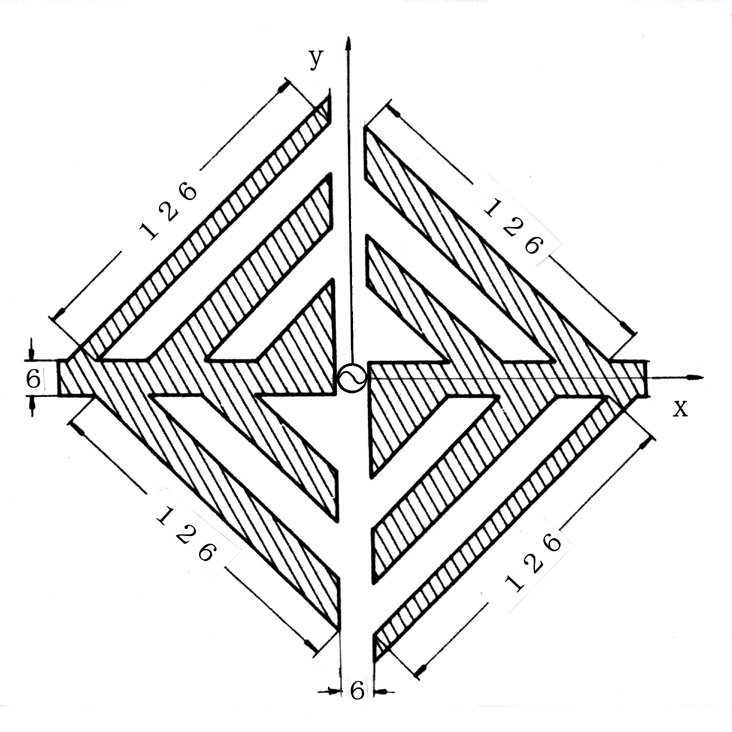

Fig. 2. Truncated alternate-leavestype self- complementary antenna (or
Square SCA). |
||
|
The alternate-leaves type self-complementary antenna (or Square SCA) has
practically omnidirectional radiation pattern. Detailed explanations are
shown in a book authored by Yasuto Mushiake : Self-Complementary Antennas ―Principle of Self-Complementarity for Constant Impedance―, 139 pages, Springer-Verlag London Ltd., London, pp. 81-88, 1996. |
||
| Original paper: T. Furuya, T. Ishizone, and Y. Mushiake: “Alternate-leaves type self-complementary antenna and its application to high gain broad-band antennas”, IECE Technical Report, AP-77, No. 43, pp. 35-40, (in Japanese), July 1977. |
||
