| Transposed excitation is essential for the broadband characteristics of LP antenna. |
|
This fact was clearly verified by the results of the calculations conducted
by Prof. H. Nakano (Ref. 1.).
|
|
 |

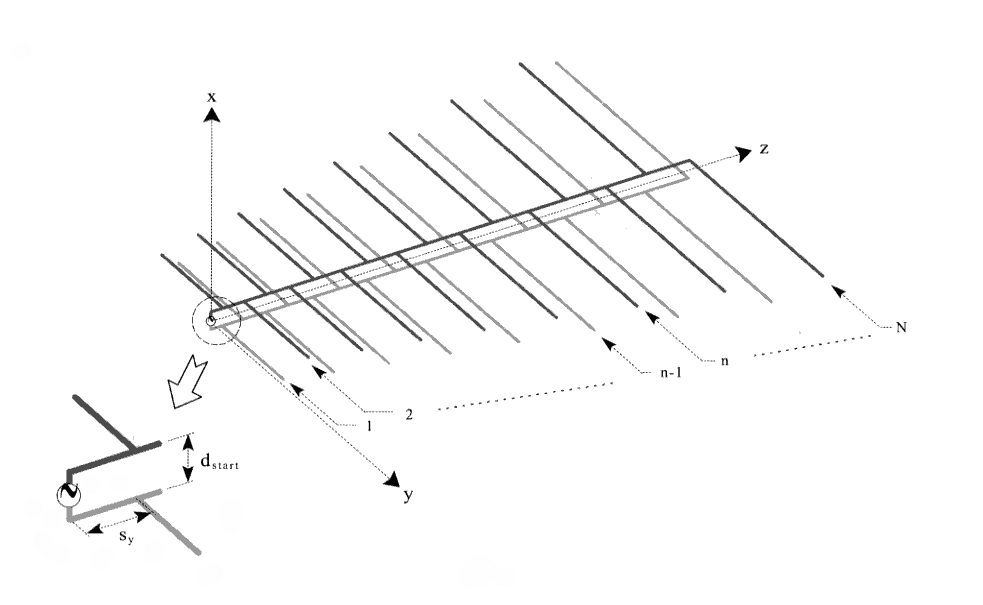

(a) Transposed excitation
for LP antenna. |
|
 |

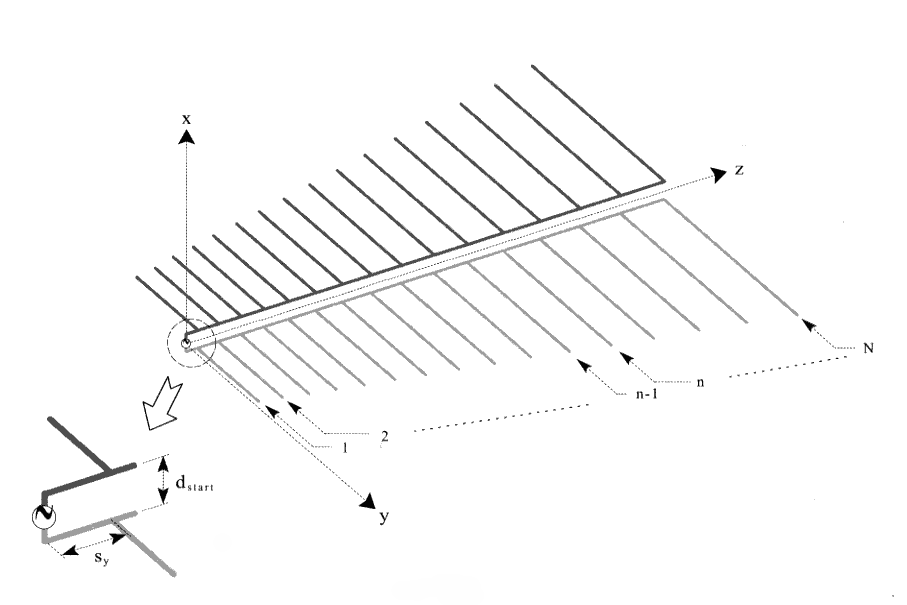

(b) Non-Transposed excitation
for LP antenna. |
|

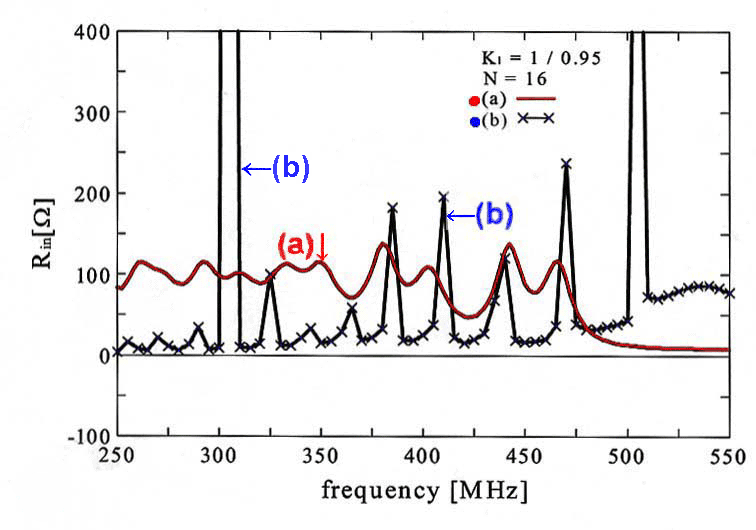

| A comparison of the input resistances. |
 |
|
|
| Ref. 1. H. Nakano. "Recent Progress in Broadband Antennas", 2006
International Symposium on Antennas and Propagation, Session A, pp. 1-4,
conf99a367-r66, November 2006, Singapore. |
Transposed excitation
for equally spaced LP antenna. |
