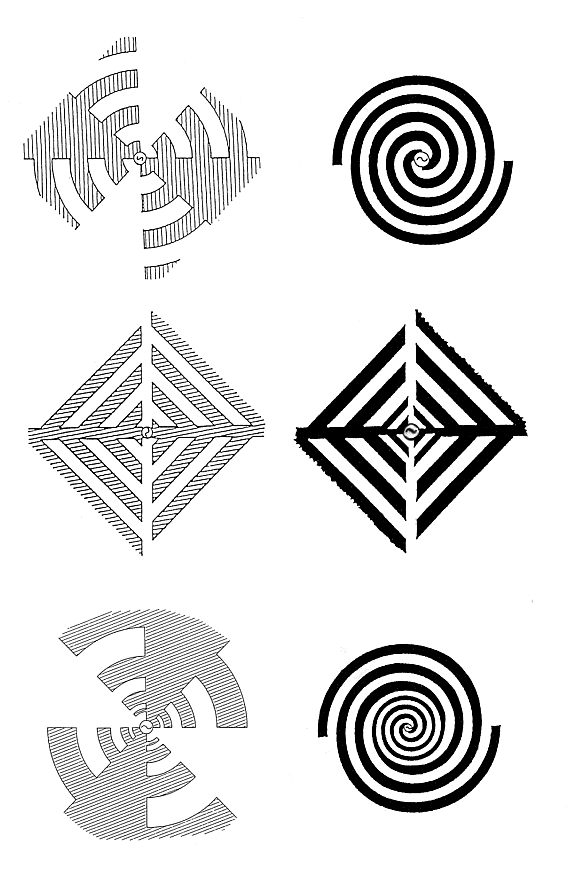

| There is infinite freedom in the shapes of the Self-Complementary Antennas that have constant input impedance independent of the source frequency. （One can easily think out various other self-complementary shapes.） |
|||
 |
|||
| Z≒188.4[Ω], (Balanced type) |
|||
 |
 |
||

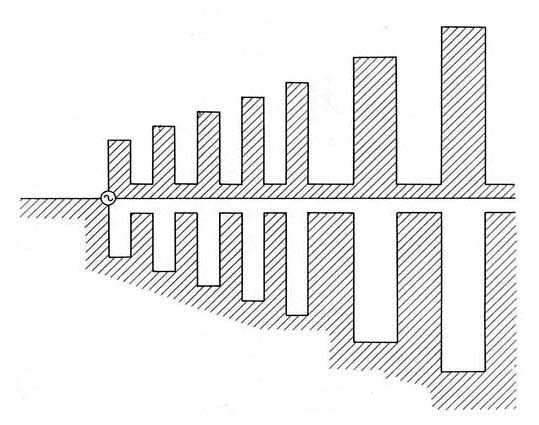

| Z≒188.4[Ω], (Unbalanced type) |
|||
 |
 |
 |
 |

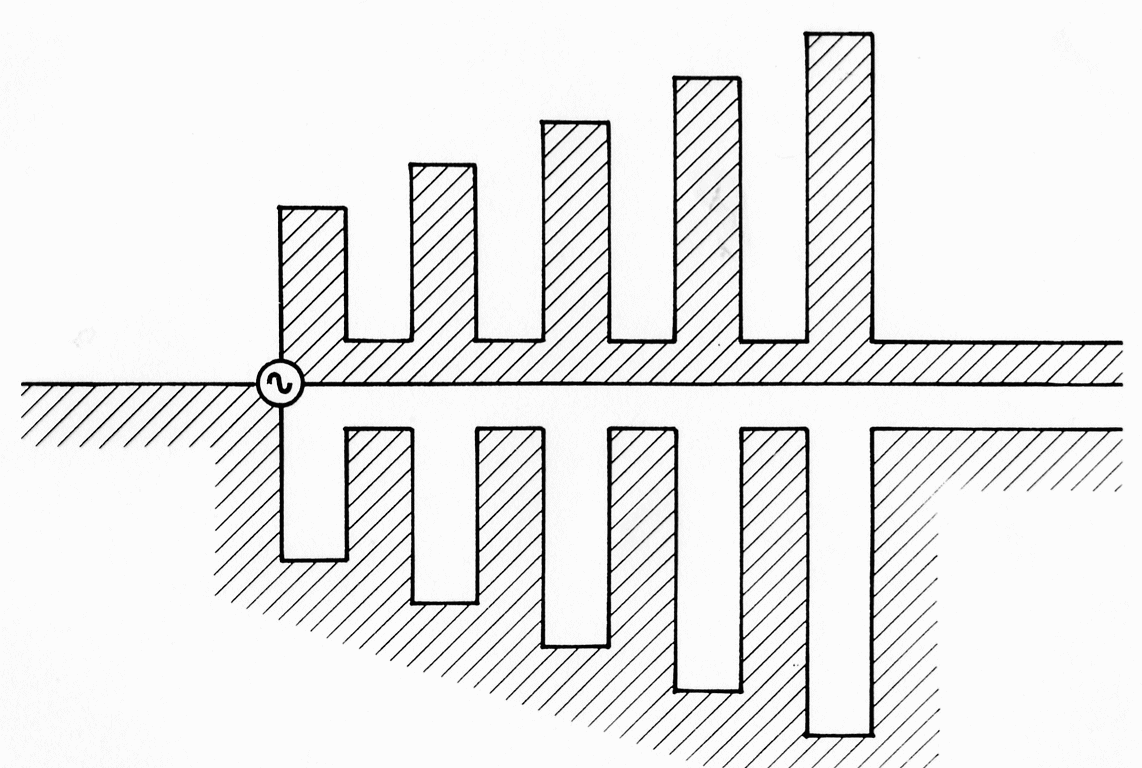

| The above figure shows the shape of the second type of self-complementary antenna originated by Y. Mushiake in 1948. |  |
 |
|

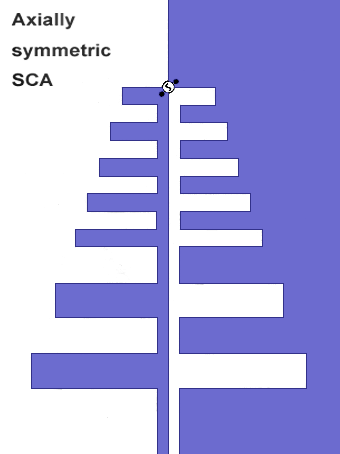

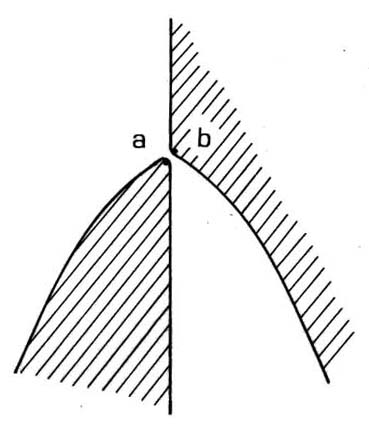

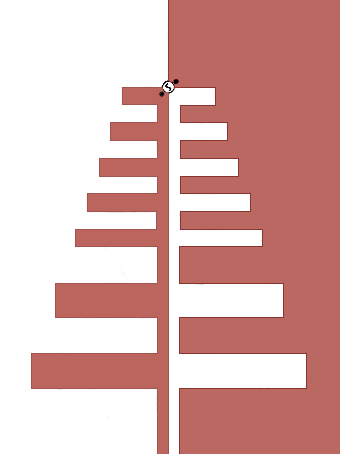

| Axially symmetric SCA. |
|||
 |
 |
||

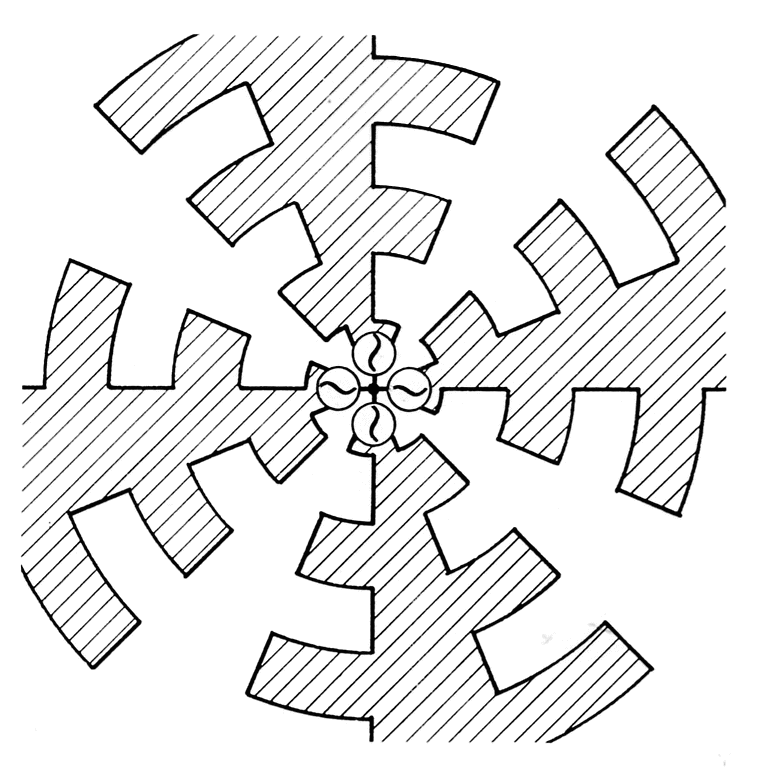

| Z≒133.2[Ω], each. (4-terminal) |

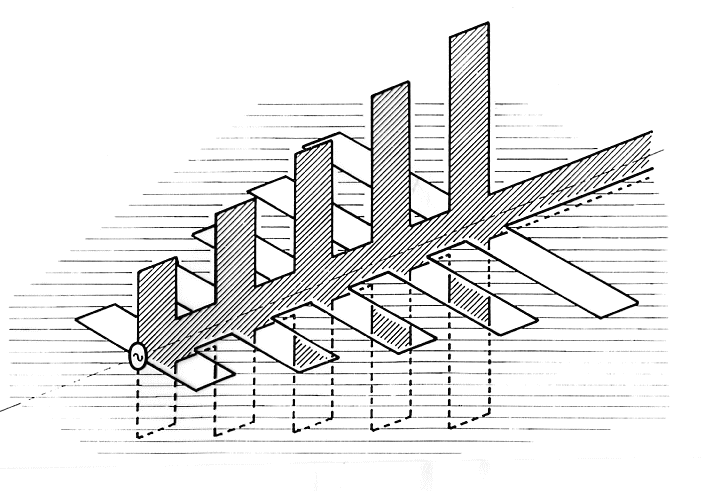

Z≒94.2[Ω]
(3-dimensional) |
||
 |
|||

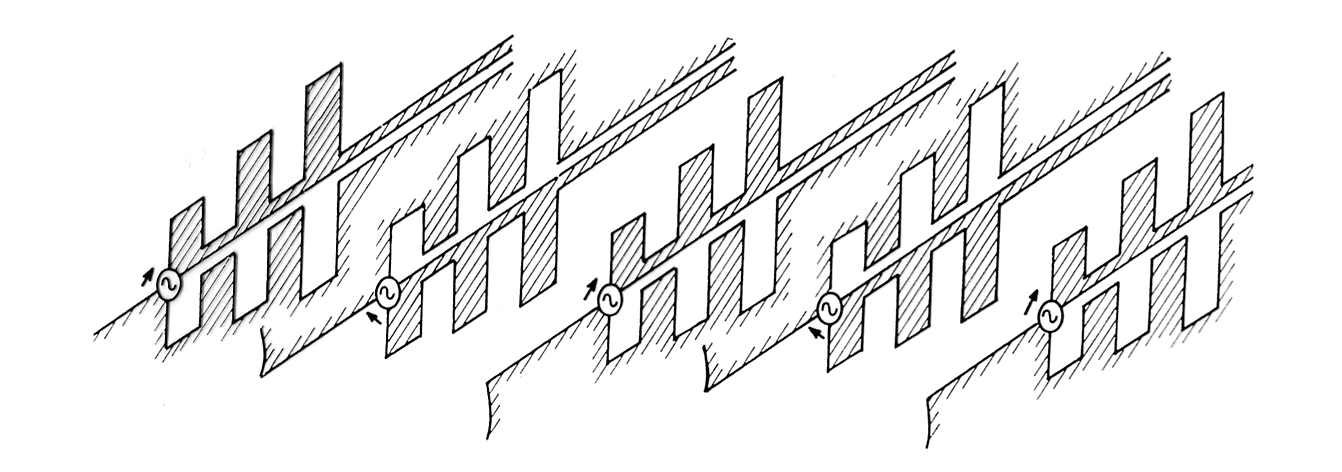

| Z≒188.4[Ω], each. |
|||
 |
 |
||

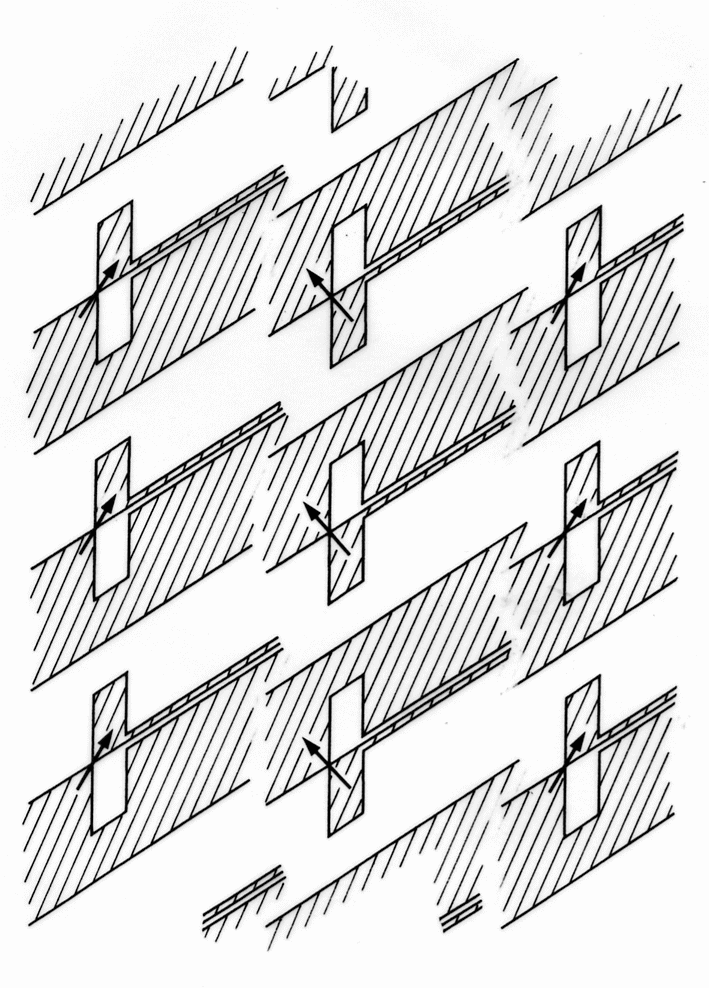

| Z≒188.4[Ω], each. |

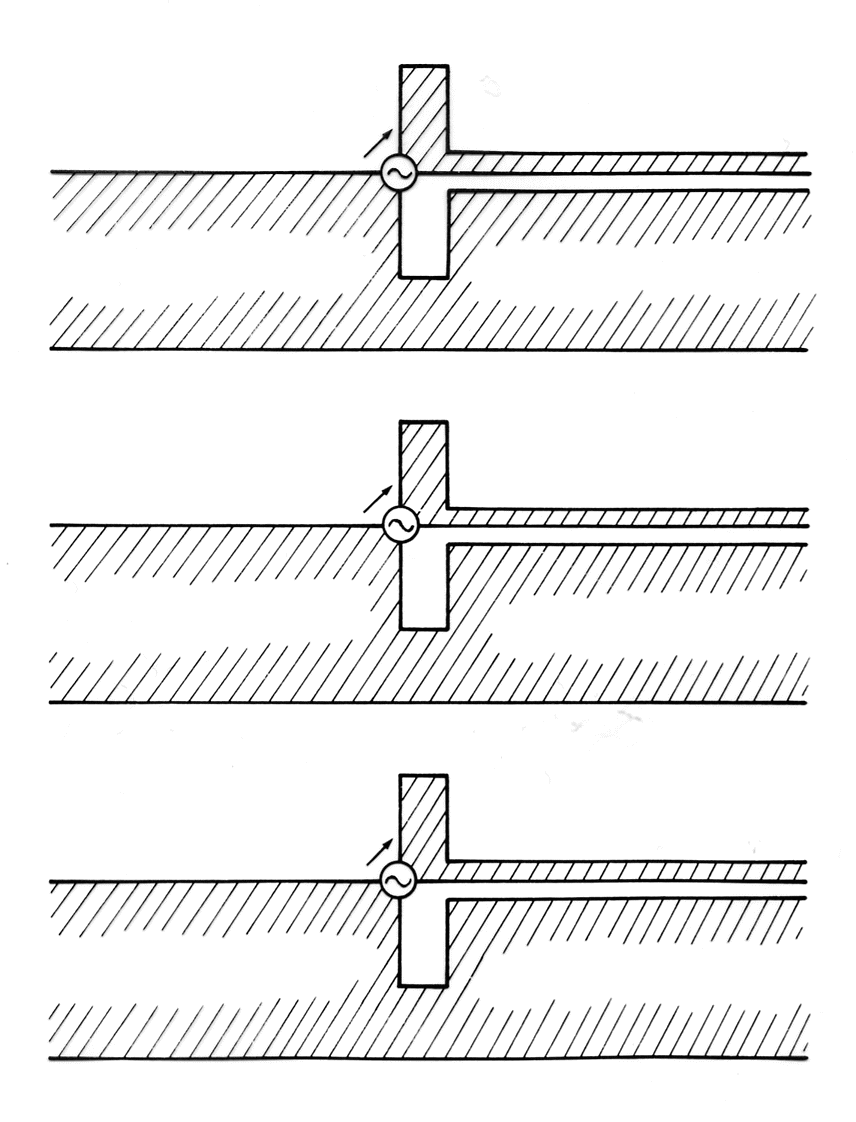

Z≒188.4[Ω], each. |
||
 |
 |
||
 |
|||

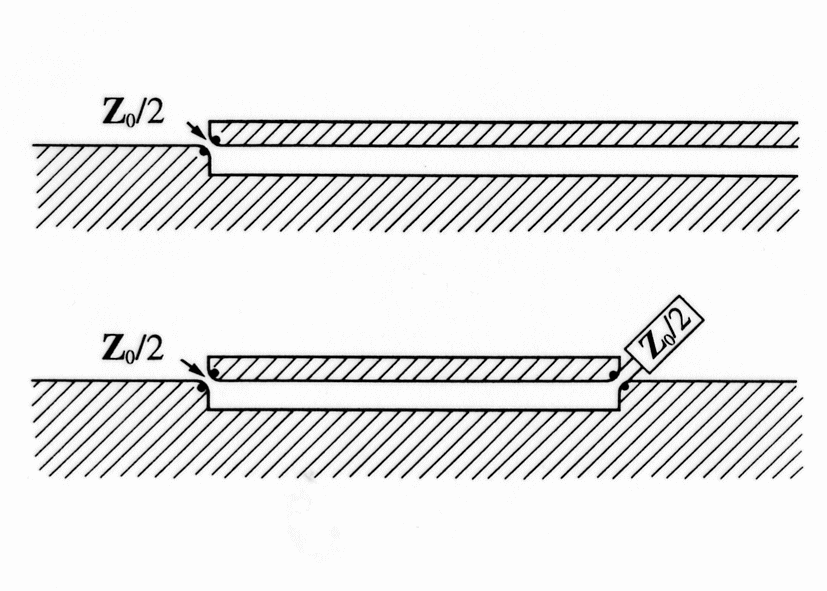

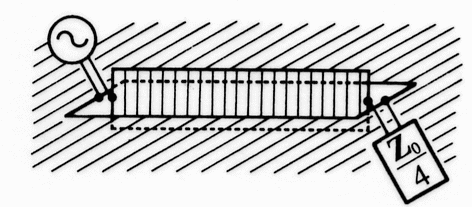

| Z≒188.4[Ω] (Non-radiative) |

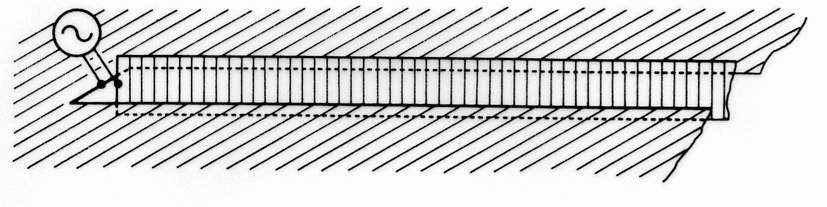

Z≒94.2[Ω] (Non-radiative) |
||
