Examples of design
charts
calculated for 3-element Yagi-Uda antenna.
Printed in YAGI-UDA ANTENNA, in 1954.
|
Dimensions.
Radii (ƒÏ) of the conductors (ƒÏ=ƒÉ/200) are taken into
account.
Lengths of the fed element (2 l1) and the reflector (2 l2) are bothă/2
Spacing between fed element and the reflector d2 is ă/4.
Length (2l3) of the director (vertical axis) and the spacing d3 from the fed element (horizontal axis) are varied.
|

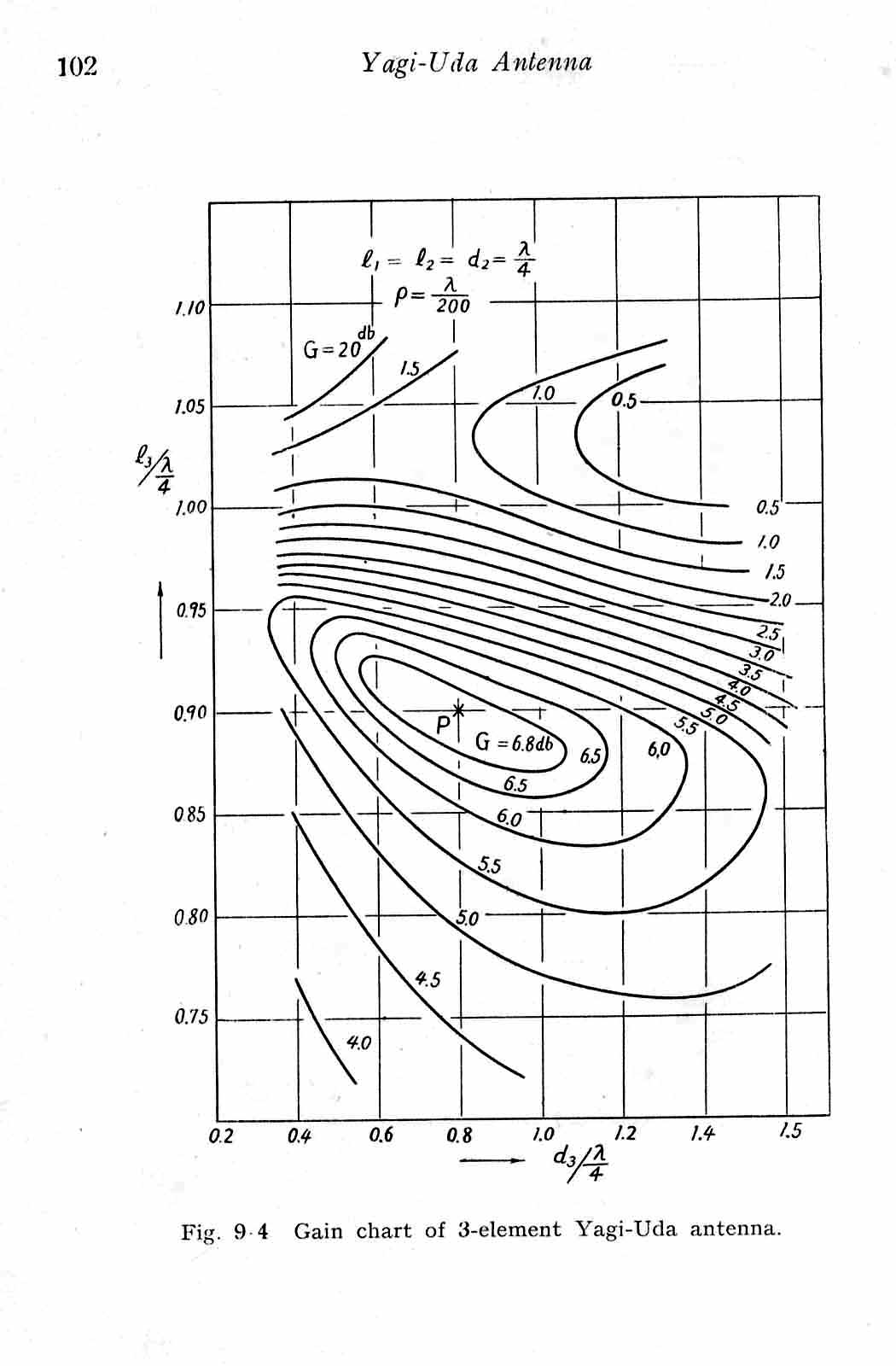

Gain chart shown in p. 102. |
|

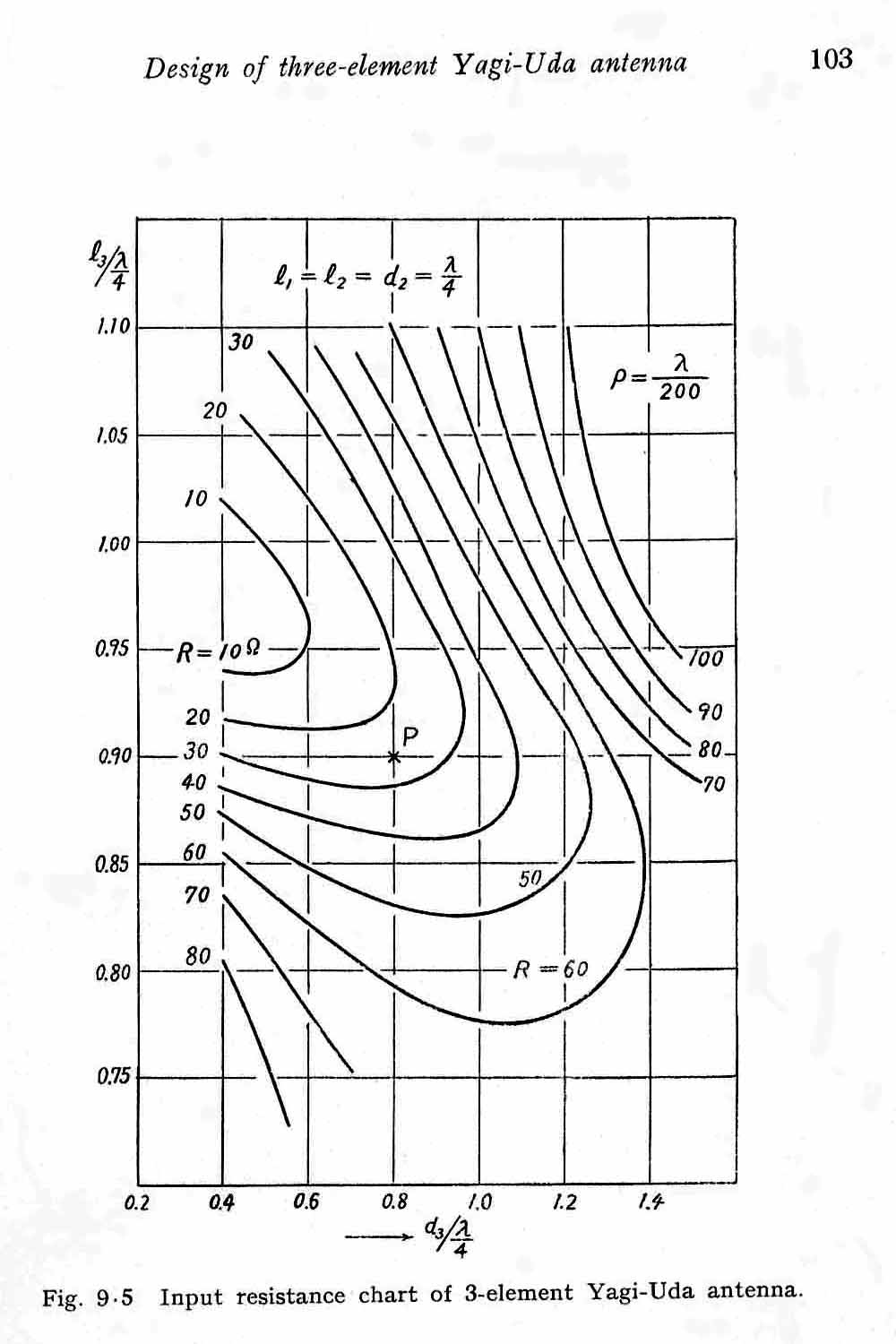

Input resistance chart shown in p. 103. |
|

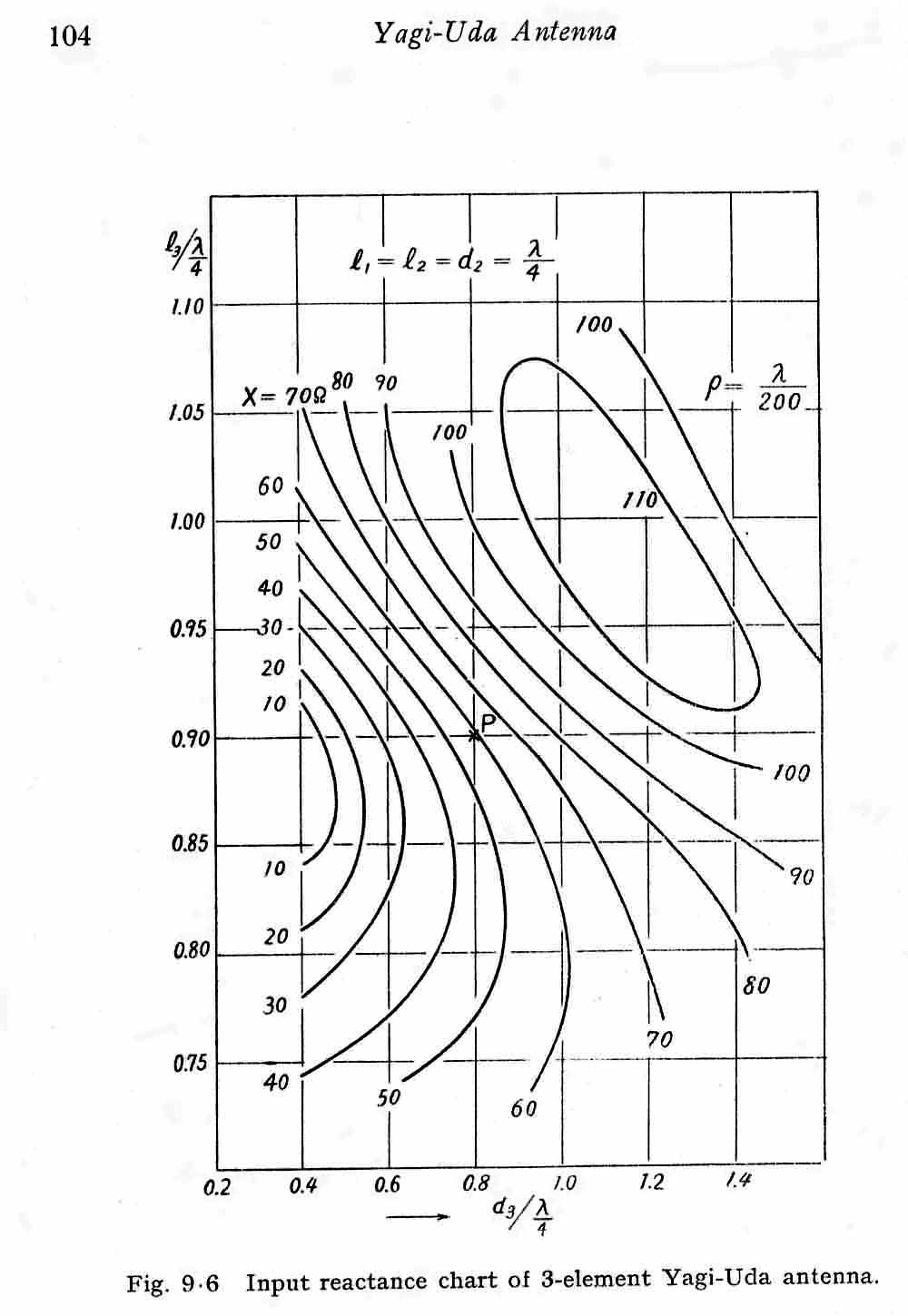

Input reactance chart shown in p. 104. |
|
|
